Grand Bahama Shipyard

bioFAS™ IFAS - Increased Flow Rate and Plant Expansion from 86,000 GPD to 264,000 GPD
Project Information
Industry
Manufacturing
Project
bioFAS™ IFAS System for Grand Bahama Shipyard
Application
Biochemical Oxygen Demand (BOD) Removal
264,000
GPD
>90%
of BOD Removed
>80 %
TSS Removed

Project Summary

The shipyard’s treatment plant was overloaded by wastewater generated on site and pumped from docked ships. Converting the existing activated sludge system to a bioFAS IFAS process raised its capacity to 264,000 GPD using the existing infrastructure.

Influent and Effluent Data

ParameterInfluentEffluent
Wastewater Flow264,000 GPD/
BOD400 mg/L<30 mg/L
TSS200 mg/L<30 mg/L

The Problem

The Grand Bahama Shipyard’s existing wastewater treatment system was overloaded and undersized to effectively treat the wastewater generated onsite and pumped by ships docked at the facility.

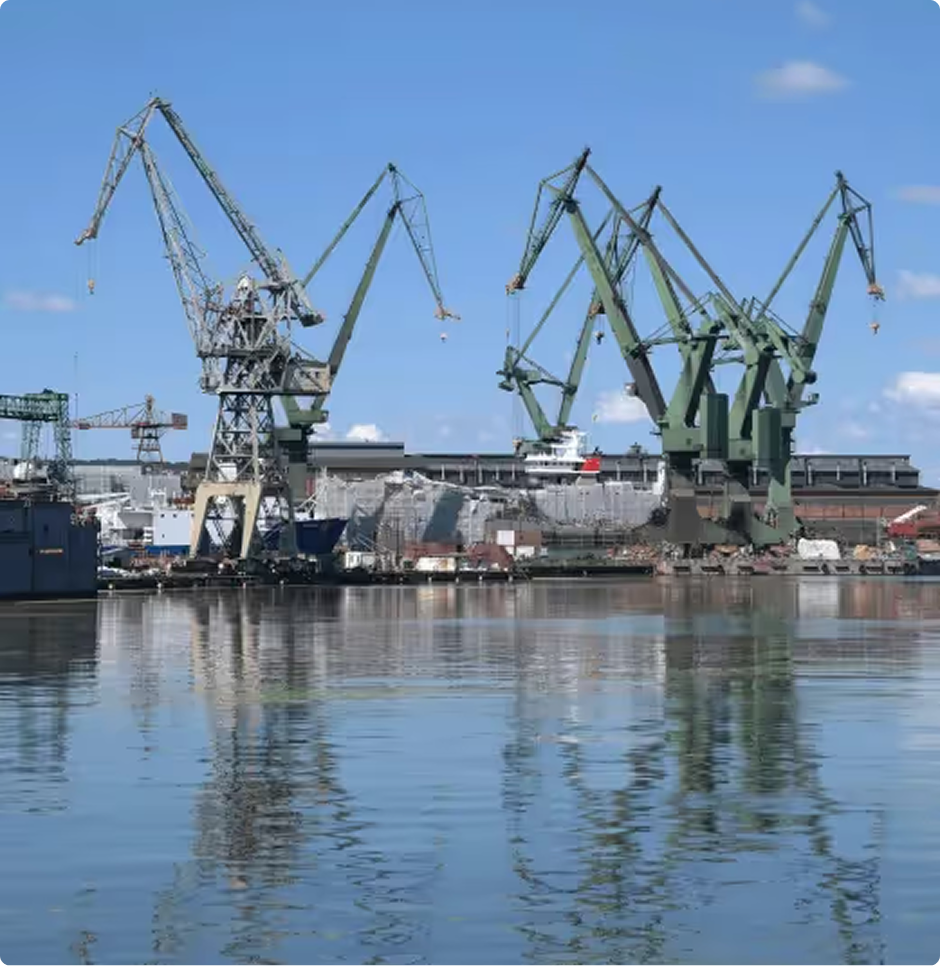

Shipyard cranes and a vessel along the waterfront.

The Solution

bioprocessH2O supplied an equipment package to retrofit and upgrade the existing treatment system converting the conventional activated sludge system into a bioFAS™ IFAS biological treatment process. The bioFAS™ attached growth fixed film process upgrade allowed the Shipyard facility to use the existing WWTP infrastructure and increase the system capacity from 80,000 to 264,000 GPD.

The Results

The bioFAS™ IFAS system effectively removes the BOD and TSS down to compliance standards at elevated wastewater flow rates.

See more of our manufacturing wastewater treatment work.

Water treatment equipment with blue pressure vessels, piping, and a control panel.
